TRAKVON · REMOTE-OPERATED · TRACKED
TRAKVON 764-90A
Tracked mower 900 mm.

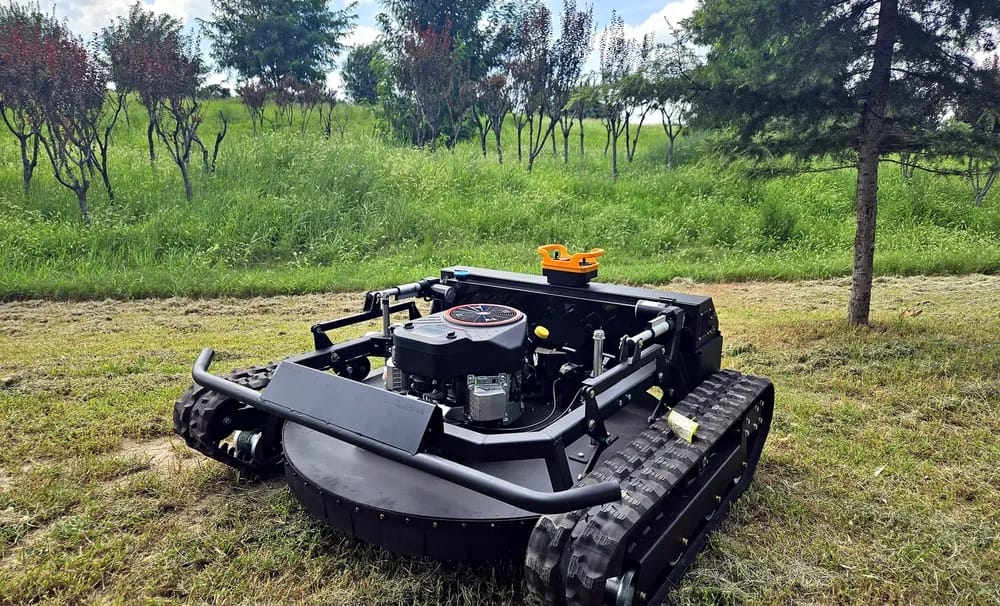

The 764-90A is a remote-controlled tracked mower configuration TRAKVON supplies with a 900 mm cutting width and a LONCIN gasoline engine rated at 27 HP.
- Listed cutting width
- 900 mm
- Listed engine power
- 27 HP
- Maximum working slope
- 60°
Supply configuration · Quote-specific terms · Public source documents
MODEL DATA
What specifications are listed for the 764-90A?
These figures come from the supplied manufacturer material for this configuration. Confirm the engine, cutter setup and specification revision in your quotation.
| Specification | Value |
|---|---|
| Cutting width | 900 mm |
| Engine | LONCIN gasoline |
| Listed power | 27 HP |
| Travel speed | 0–6 km/h |
| Maximum working slope | 60° |
| Cutting-height adjustment | 10–200 mm |
| Machine dimensions | 1400 × 1300 × 630 mm |
| Packing dimensions | 1510 × 1370 × 800 mm |
| Machine / packed weight | 308 / 380 kg |
Figures describe the configuration TRAKVON supplies and are not independent test results. The slope figure is a continuous working slope, not a climbing limit. Confirm the dimensional convention, final configuration and packing before ordering.
How should I assess this configuration for my site?
This is the higher-rated of the two 900 mm tracked configurations: the same deck width as the 608-90A on 27 HP rather than 22. More power usually holds cutting speed better in dense growth, and burns more fuel for the same area. Describe the vegetation and the ground so the engine and cutter pairing can be checked against the job.
- Record the measured grade, the direction the machine will travel and whether it works across the face
- Describe the vegetation, the ground and how it behaves after rain
- Note the narrowest access on the route and what the machine has to carry
SOURCE & DOWNLOADS
Which documents can I review?
- Download the model specification summary (PDF, 764-90A on page 4).
- View the original brochure table (PDF excerpt, page 2). Original brochure printed page 04, original PDF page 4.
- Ask for the current datasheet, manual and packing information.
The source document's publishing date and revision were not supplied. Slope and productivity figures lack test conditions; they are not verified operating limits. Certifications, when needed, must identify the applicable model and document.
What should I send for a 764-90A quotation?
Send the model, quantity, destination country or port, application and site conditions. List the engine preference, controller or camera requirements and parts you want included. Minimum order quantity, lead time, warranty, spare parts and trade terms are confirmed per order.
Questions about the 764-90A
What specifications are listed for the 764-90A?
TRAKVON quotes a 900 mm cutting width, a LONCIN gasoline engine rated at 27 HP, travel speed of 0–6 km/h and machine dimensions of 1400 × 1300 × 630 mm. Confirm the quoted engine, cutter setup and revision before ordering.
Is there a wider version of this machine?
The source material lists the 764 series as 764-90A, a 900 mm configuration. A wider deck needs its own model-specific documentation, so do not assume the 900 mm figures apply to a wider machine.
What slope can the 764-90A work on?
The supplied brochure gives a maximum working slope of 60°. It does not state the direction, ground or load behind the figure, so confirm those for your site before relying on it.
