TRAKVON · REMOTE-OPERATED · TRACKED

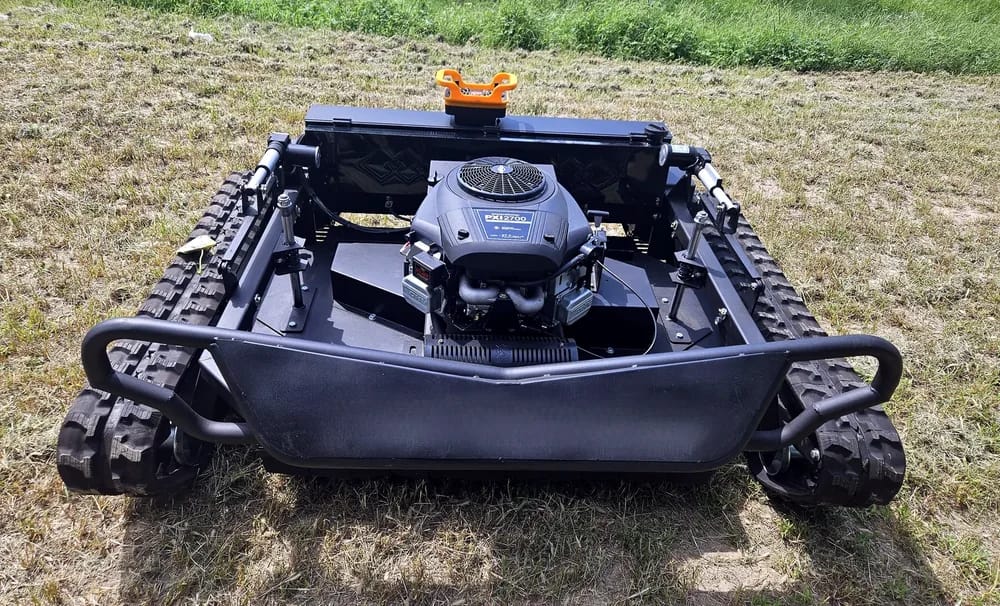

TRAKVON 810-130A
Tracked mower 1300 mm.
The 810-130A is the widest configuration in the range, with a 1300 mm cutting width and a Briggs & Stratton gasoline engine rated at 27 HP.
- Listed cutting width
- 1300 mm
- Listed engine power
- 27 HP
- Maximum working slope
- 60°
Supply configuration · Quote-specific terms · Public source documents
MODEL DATA
What specifications are listed for the 810-130A?
These figures come from the supplied manufacturer material for this configuration. Confirm the engine, cutter setup and specification revision in your quotation.
| Specification | Value |
|---|---|
| Cutting width | 1300 mm |
| Engine | Briggs & Stratton gasoline |
| Listed power | 27 HP |
| Travel speed | 0–6 km/h |
| Maximum working slope | 60° |
| Cutting-height adjustment | 10–200 mm |
| Machine dimensions | 1430 × 1710 × 680 mm |
| Packing dimensions | 1510 × 1810 × 800 mm |
| Machine / packed weight | 470 / 540 kg |
Figures describe the configuration TRAKVON supplies and are not independent test results. The slope figure is a continuous working slope, not a climbing limit. Confirm the dimensional convention, final configuration and packing before ordering.
How should I assess this configuration for my site?
At 1300 mm this is a wide machine. Check the narrowest access on the route, the transport you will use and the turning space at each end of the run before choosing it, and compare its packed dimensions against the other configurations. The brochure lists four blades on this build; confirm the cutting-height range and the blade setup against the vegetation you have.
- Record the measured grade, the direction the machine will travel and whether it works across the face
- Describe the vegetation, the ground and how it behaves after rain
- Note the narrowest access on the route and what the machine has to carry
SOURCE & DOWNLOADS
Which documents can I review?
- Download the model specification summary (PDF, 810-130A on page 5).
- View the original brochure table (PDF excerpt, page 2). Original brochure printed page 03, original PDF page 4.
- Ask for the current datasheet, manual and packing information.
The source document's publishing date and revision were not supplied. Slope and productivity figures lack test conditions; they are not verified operating limits. Certifications, when needed, must identify the applicable model and document.
What should I send for a 810-130A quotation?
Send the model, quantity, destination country or port, application and site conditions. List the engine preference, controller or camera requirements and parts you want included. Minimum order quantity, lead time, warranty, spare parts and trade terms are confirmed per order.
Questions about the 810-130A
What specifications are listed for the 810-130A?
TRAKVON quotes a 1300 mm cutting width, a Briggs & Stratton gasoline engine rated at 27 HP, travel speed of 0–6 km/h and machine dimensions of 1430 × 1710 × 680 mm. Confirm the quoted engine, cutter setup and revision before ordering.
Do the 810-90 and 810-110 entries share these specifications?
No. Our catalog lists 810-130A for this series, and no 810-90 or 810-110 model number is confirmed. The 1300 mm figures cannot be applied to a narrower machine.
What slope can the 810-130A work on?
The supplied brochure gives a maximum working slope of 60°. It does not state the direction, ground or load behind the figure, so confirm those for your site before relying on it.
