TRAKVON · REMOTE-OPERATED · WHEELED

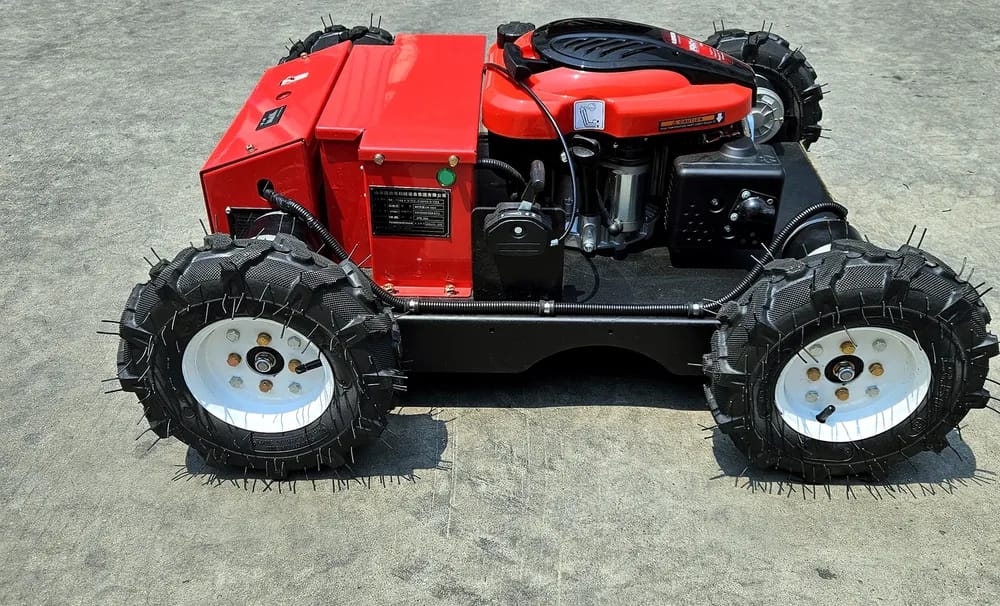

TRAKVON Four-wheel-drive 196
Wheeled mower 550 mm.
The four-wheel-drive 196 is the wheeled configuration in this catalog: a 550 mm cutting width on a LONCIN gasoline engine rated at 7.5 HP.
- Listed cutting width
- 550 mm
- Listed engine power
- 7.5 HP
- Maximum working slope
- 30°
Supply configuration · Quote-specific terms · Public source documents
MODEL DATA
What specifications are listed for the Four-wheel-drive 196?
These figures come from the supplied manufacturer material for this configuration. Confirm the engine, cutter setup and specification revision in your quotation.
| Specification | Value |
|---|---|
| Cutting width | 550 mm |
| Engine | LONCIN gasoline |
| Listed power | 7.5 HP |
| Travel speed | 0–5 km/h |
| Maximum working slope | 30° |
| Cutting-height adjustment | 40 / 80 mm |
| Machine dimensions | 1000 × 830 × 430 mm |
| Packing dimensions | 1010 × 890 × 570 mm |
| Machine / packed weight | 100 / 130 kg |
Figures describe the configuration TRAKVON supplies and are not independent test results. The slope figure is a continuous working slope, not a climbing limit. Confirm the dimensional convention, final configuration and packing before ordering.
How should I assess this configuration for my site?
This is the lightest machine in the catalog and the only wheeled one, and its rated working slope is correspondingly lower — 30° against the 45–70° of the tracked range. It suits firm, level or gently sloping ground, where a tracked machine is usually the more expensive answer. If your ground is soft, wet or steeper than that, tell us: that is the point at which the tracked range becomes the better fit.
- Record the measured grade, the direction the machine will travel and whether it works across the face
- Describe the vegetation, the ground and how it behaves after rain
- Note the narrowest access on the route and what the machine has to carry
SOURCE & DOWNLOADS
Which documents can I review?
- Download the model specification summary (PDF, Four-wheel-drive 196 on page 6).
- View the original brochure table (PDF excerpt, page 7). Original brochure printed page 14, original PDF page 9.
- Ask for the current datasheet, manual and packing information.
The source document's publishing date and revision were not supplied. Slope and productivity figures lack test conditions; they are not verified operating limits. Certifications, when needed, must identify the applicable model and document.
What should I send for a Four-wheel-drive 196 quotation?
Send the model, quantity, destination country or port, application and site conditions. List the engine preference, controller or camera requirements and parts you want included. Minimum order quantity, lead time, warranty, spare parts and trade terms are confirmed per order.
Questions about the Four-wheel-drive 196
What specifications are listed for the four-wheel-drive 196?
TRAKVON quotes a 550 mm cutting width, a LONCIN gasoline engine rated at 7.5 HP, travel speed of 0–5 km/h and machine dimensions of 1000 × 830 × 430 mm. Confirm the quoted engine, cutter setup and revision before ordering.
Is this the same machine as the 196-55L?
No. The 196-55L is a tracked configuration; this is a separate four-wheel-drive mower, and the specifications do not transfer between them.
Why is the rated working slope lower than the tracked models?
The listed figure is 30°, against 45–70° for the tracked range. Wheels concentrate the machine's weight on four small contact patches, so they lose grip sooner — and where a track slides, a wheel can roll. Confirm the figure, the direction and the ground conditions for your site.
